[Verilog] 22. UART 제작기 (1)

오늘은 UART를 제작하는 전반적인 과정을 담아보겠습니다.

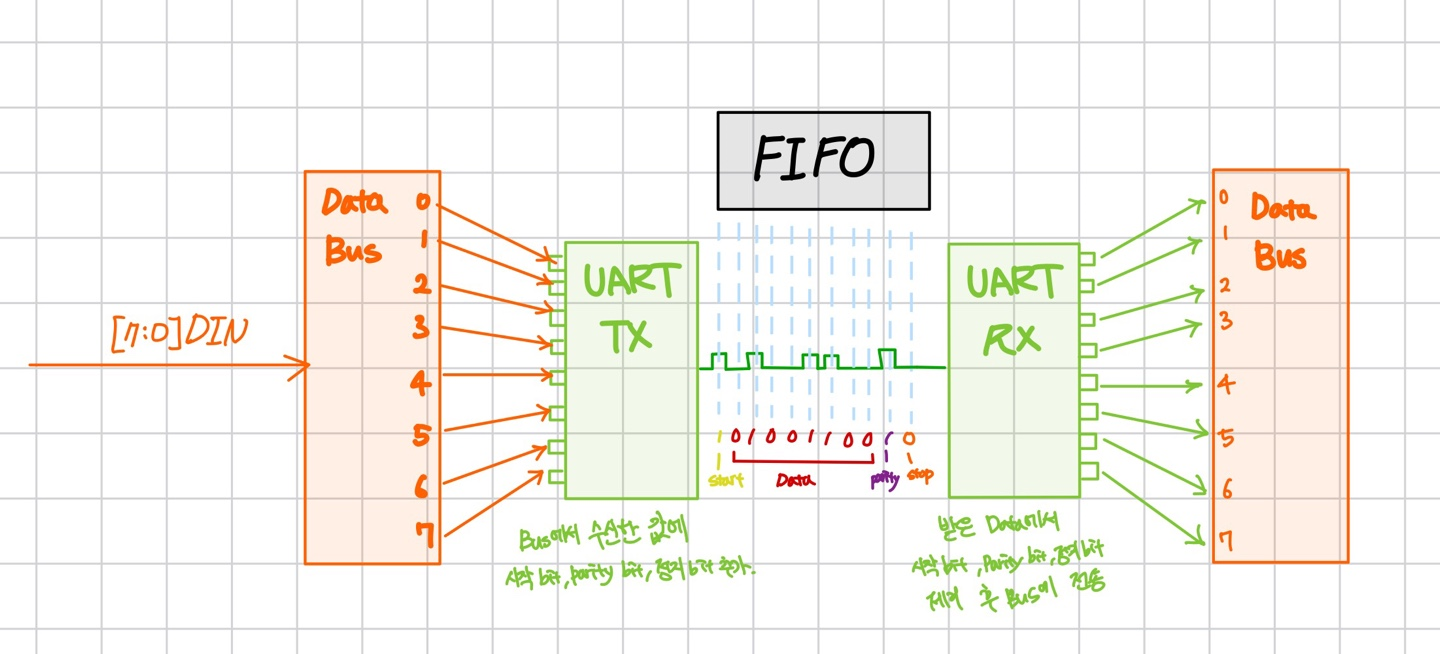

전체적인 Block입니다. DATA가 버스를 통해 병렬로 UART TX로 전달되면 TX에서는 FIFO를 통해서 RX로 전달하고 RX에서는 다시 병렬로 DATA 버스로 저장하는 과정을 담아보겠습니다.



---

input_data_bus

`timescale 1ns / 1ps
module data_bus(
    input CLK,
    input RST,
    input [7:0] DIN,
    output reg DOUT0,
    output reg DOUT1,
    output reg DOUT2,
    output reg DOUT3,
    output reg DOUT4,
    output reg DOUT5,
    output reg DOUT6,
    output reg DOUT7
);

reg [2:0] data_cnt;
reg [7:0] bus [7:0];
reg full;

integer i;
initial begin
    full <= 0;
    data_cnt <= 0;
    for(i = 0; i <8; i = i + 1)
    bus[i] <= 8'd0;
end

always @(posedge CLK or posedge RST) begin
    if (RST) begin
        data_cnt <= 0;
        full <= 0;
        {DOUT7, DOUT6, DOUT5, DOUT4, DOUT3, DOUT2, DOUT1, DOUT0} <= 8'd0;
    end
    else begin
        if (DIN != 0) begin
            bus[data_cnt] <= DIN;
            if(data_cnt == 7) begin
                data_cnt <= 0;
                full <= 1;
            end
            else begin
                data_cnt <= data_cnt + 1;
            end
        end
        if (full) begin
            {DOUT7, DOUT6, DOUT5, DOUT4, DOUT3, DOUT2, DOUT1, DOUT0} <= bus[data_cnt];
            data_cnt <= data_cnt + 1;
            end
    end
end

endmodule





---

data_bus_tb

`timescale 1ns / 1ps

module data_bus_tb();

// Declare input signals
reg CLK;
reg RST;
reg [7:0] DIN;

// Declare 125MHz CLK
parameter CLK_PD = 8.0;

// Declare output signals
wire DOUT0, DOUT1, DOUT2, DOUT3, DOUT4, DOUT5, DOUT6, DOUT7;

// Instantiate the data_bus module
data_bus uut (
    .CLK(CLK),
    .RST(RST),
    .DIN(DIN),
    .DOUT0(DOUT0),
    .DOUT1(DOUT1),
    .DOUT2(DOUT2),
    .DOUT3(DOUT3),
    .DOUT4(DOUT4),
    .DOUT5(DOUT5),
    .DOUT6(DOUT6),
    .DOUT7(DOUT7)
);

// Clock generation
always begin
    #(CLK_PD/2) CLK = ~CLK;  // Generate clock with 10ns period
end

// Test scenario
initial begin
    // Initialize inputs
    CLK = 0;
    RST = 1;
    DIN = 8'h00;

    // Release reset
    #(3*CLK_PD) RST = 0;

    // Test data input
    #CLK_PD DIN = 8'h01;
    #CLK_PD DIN = 8'h23;
    #CLK_PD DIN = 8'h45;
    #CLK_PD DIN = 8'h67;
    #CLK_PD DIN = 8'h89;
    #CLK_PD DIN = 8'hAB;
    #CLK_PD DIN = 8'hCD;
    #CLK_PD DIN = 8'hEF;

    // Set DIN to 0 to trigger output phase
    #10 DIN = 8'h00;

    // Wait for sufficient time to observe all outputs
    #100 $finish;
end

endmodule





---

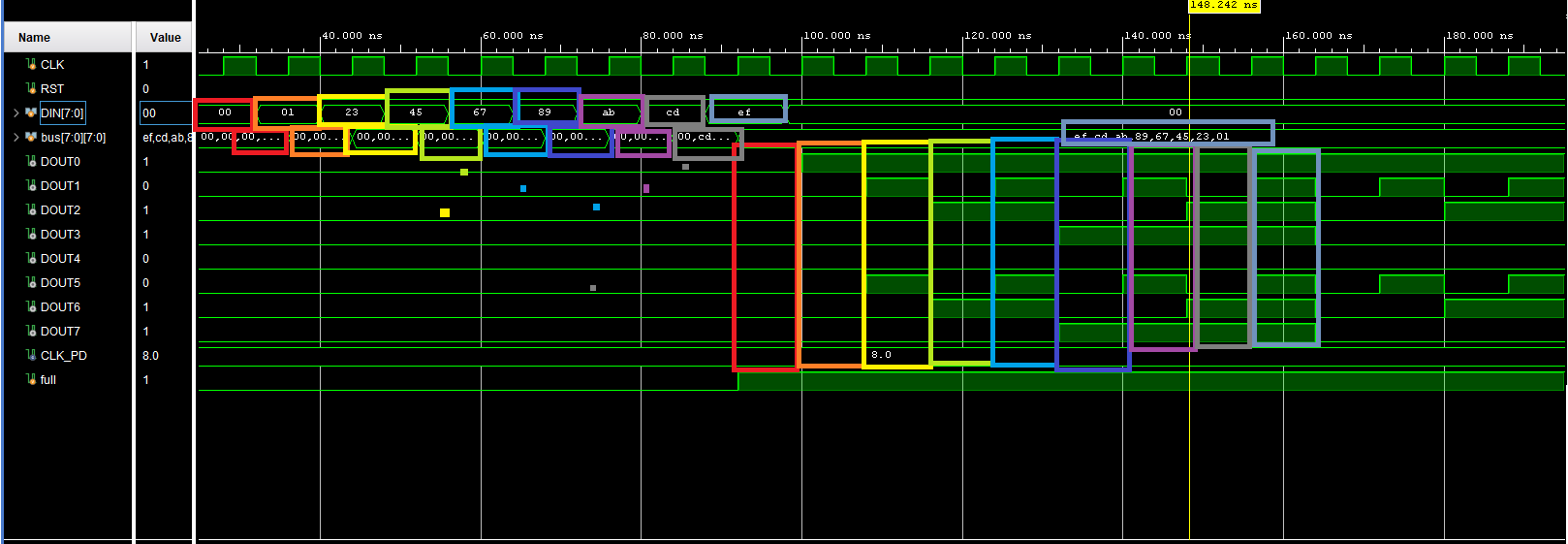

Simulation

순차적 데이터 병력 출력 확인.
